Problem with MIDI connection

[Frederix]

Hello,

I tried to make a connection with Bitfocus companion. There I configured a "General Midi". This module is communicating with rtpMIDI to the Jingle Palette software.
If I start the jingle with the Jingle pallete GUI then the feedback communication is working without any problems. If I start the jingle from the JPR GUI then I've got an note-on / note-off message in companion.

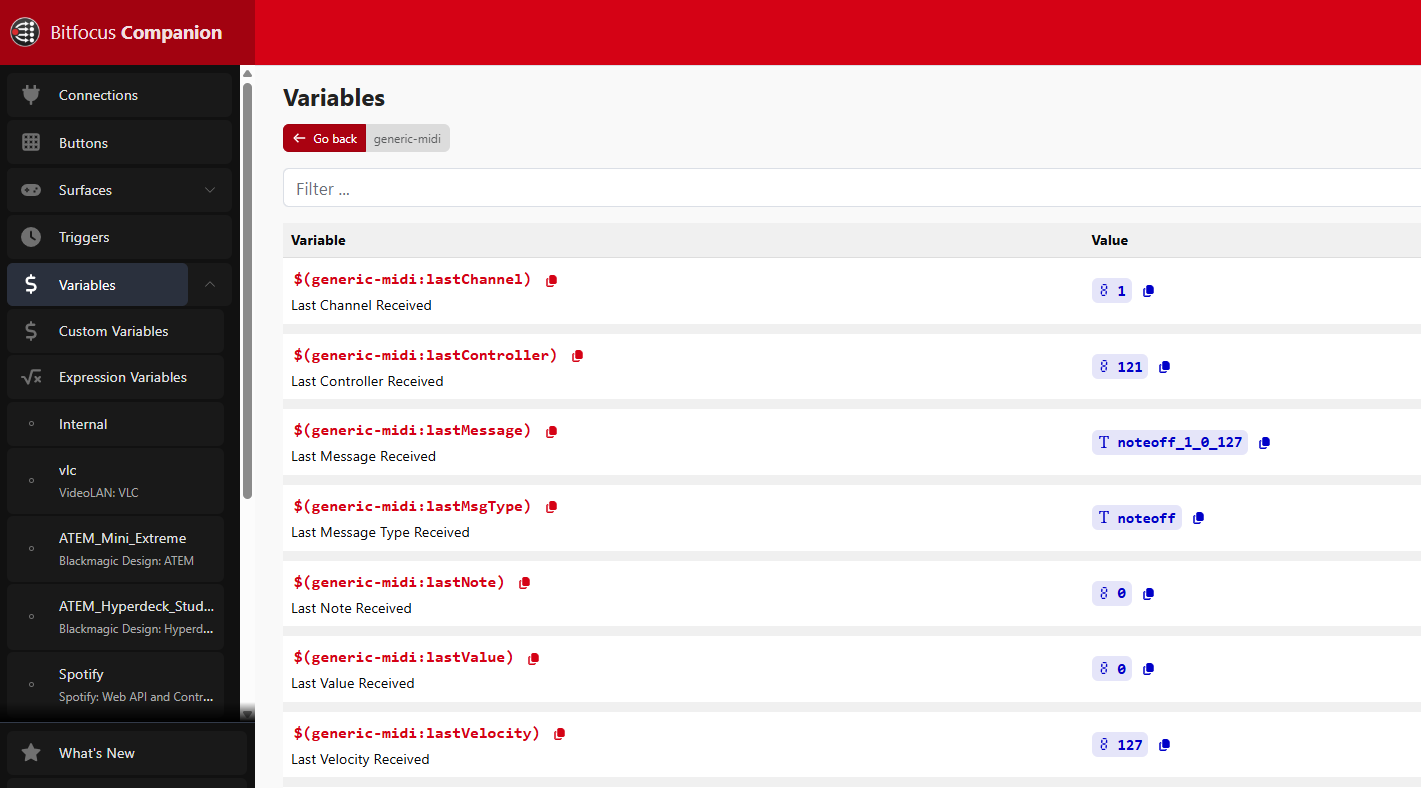

companion


If I want to start the jingle from my Companion the jingle won't start
I've checked several things and every thing is working well exept the starting of the Jingle.

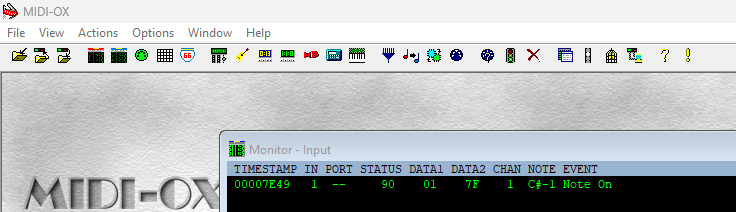

the midi is checked with MIDI-OX.

Midi-OX

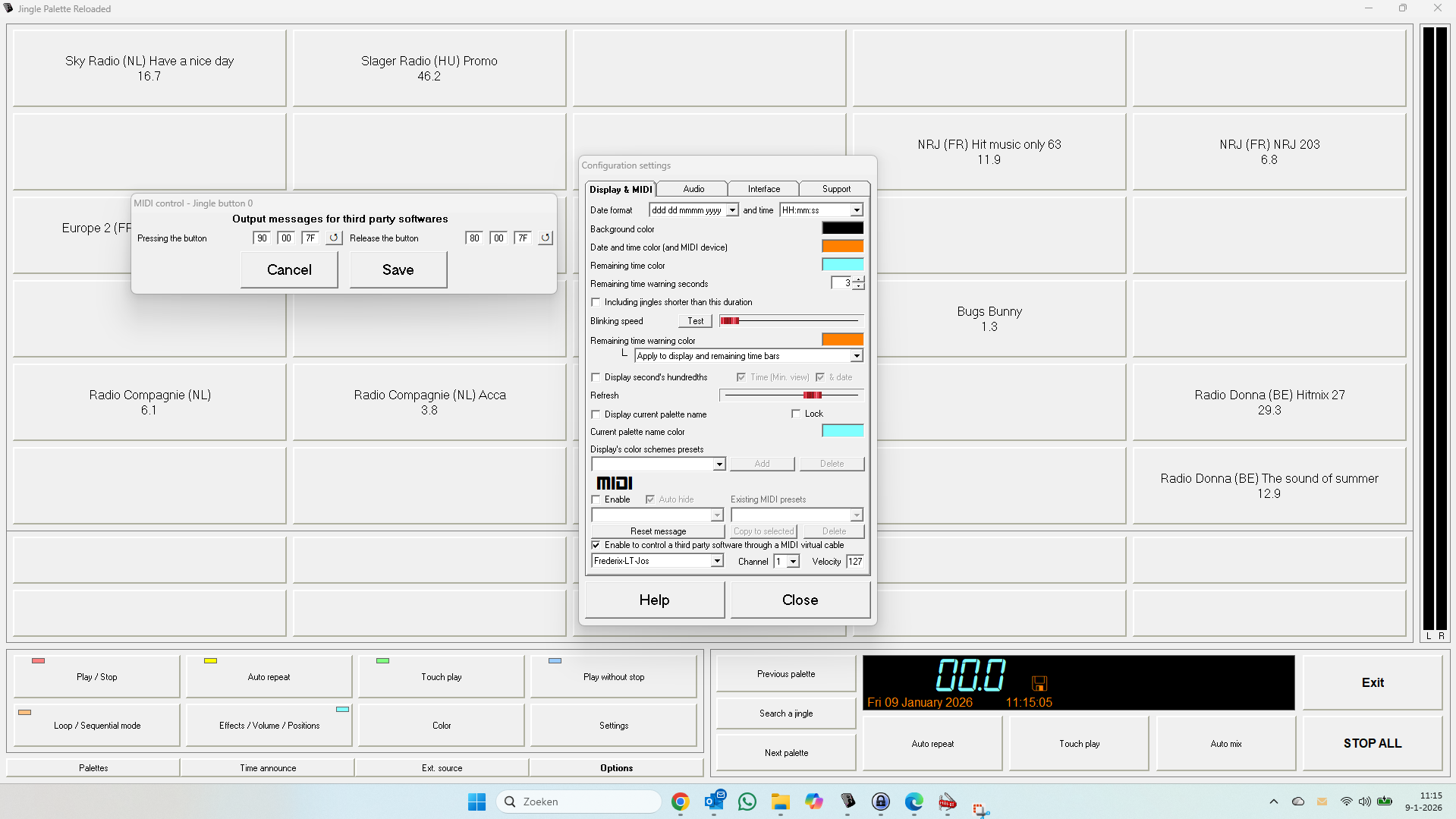

For the details I put the screenshot in the atachment.

screenshot

screenshot JPR.png (147.02 KiB) Viewed 42 times

Does anybody knows what's going wrong?

Thanks in advance!

Jos Frederix

[Couin]

Hi : )

I don't know what is Bit Companion but to trigger jingles from a MIDI device, you have to enable MIDI (the check box juste under the "MIDI" logo, select your device, and the MIDI Learn each button (with right click on the button). You can also trigger Previous/Next palette, Auto mix, Touch play, Auto repeat and Stop all.

[Frederix]

Thanks ,now its working!
Now I can control my Jingles with my Elgato Streamdeck and control it with other features of my setup.

[Couin]

Great !
